brushed 304 stainless steel Concealed shower Mixer With Ceiling Head Shower

  • Item Name: 304 Stainless Steel Bathroom Concealed shower
    Specification:
    Item No.: YT-1-3160H
    Installation Way: Wall mounted
    Number of Handles: Single Handle
    Surface Finish: Brushed Nickel
    Style: Bathroom Shower Set
    Material: 304 Stainless Steel
    Flow Rate: 1.8 GPM (6.81 L/min)
    Water Pressure: 1.6MPa
    Air Pressure: 0.6MPa
    Cartridge Type: Ceramic cartrige
    Cartridge Lifetime: 300, 000 Clycles
    Cold and Hot Switch: Yes
    Packing: Clothbag+Cardboard +inner box+outer carton

Concealed shower Modle:YT-1-3160H


Product Description

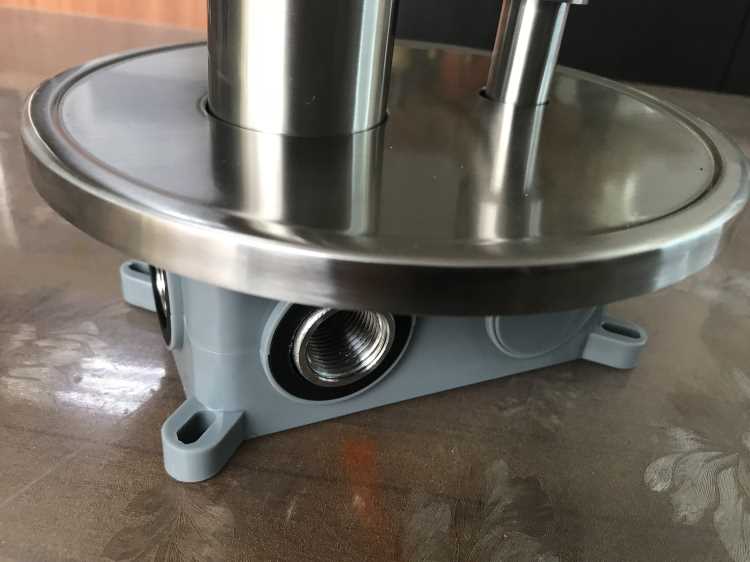

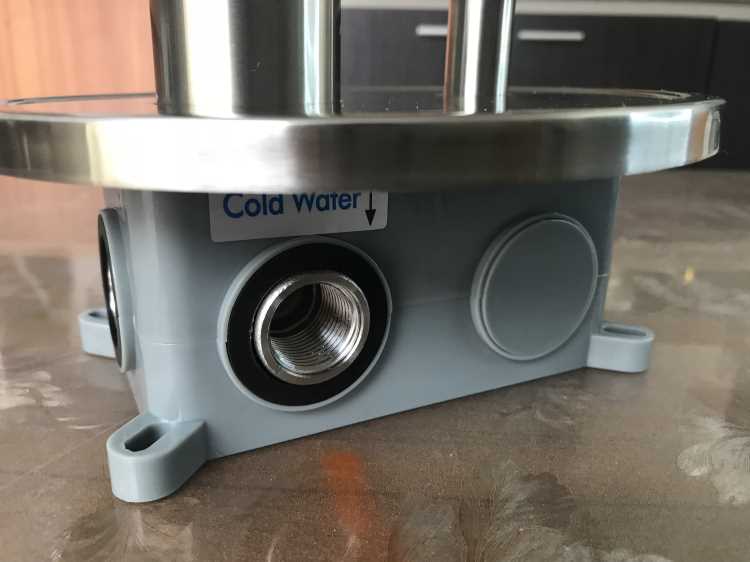

Features of embedded box

YT-1-3160H4 Concealed shower.jpg

Analysis of 8 characteristics


1. Convenient for installation and maintenance of water electrician.


2.Water can be tested in advance. The test pipeline is there any blockage or water leakage.


3. Even the second decoration can ensure that the valve body is not damaged.

YT-1-3160H2 Concealed shower.jpg

4.It can prevent water from flowing into the valve body from the wall,So as to protect the life of valve body.


5.The 35 core valve body can be connected with the corresponding panel,Handle dy combination, free collocation.


6.The depth of the embedded box from the wall to the tile surface can be 60-80mm, and the recommended embedded depth is 75mm.

YT-1-3160H1 Concealed shower.jpg

7. in the process of decoration, there are embedded boxes to protect the valve body.After that, remove the protection cover of the embedded box, and the valve body is brand new.


8. mixing valve core and external components can be replaced outside the wall without removing the wall.
