Know shower set. We started with disassembly

Know shower set，We started with disassembly

From the "evolution" way of opening shower shower, it can be found that the evolution process is basically derived from the needs of users in daily shower. In view of these requirements, the researchers design and upgrade the shower, such as the need for different appearance shower, which leads to the popularity of black shower; users want to have the shower experience of constant temperature water at the same time, and the constant temperature shower emerge as the times require. It can be predicted that the shower will also undergo numerous iterations and upgrades in the future, providing more convenience for the user's life.

Obviously, the "evolution" of shower is focused on the design and function of "add and subtract method", and the basic components of the shower are relatively fixed.

Next, take the most common and commonly used shower in modern family as a model, carry out disassembly, and show everyone the components of shower.

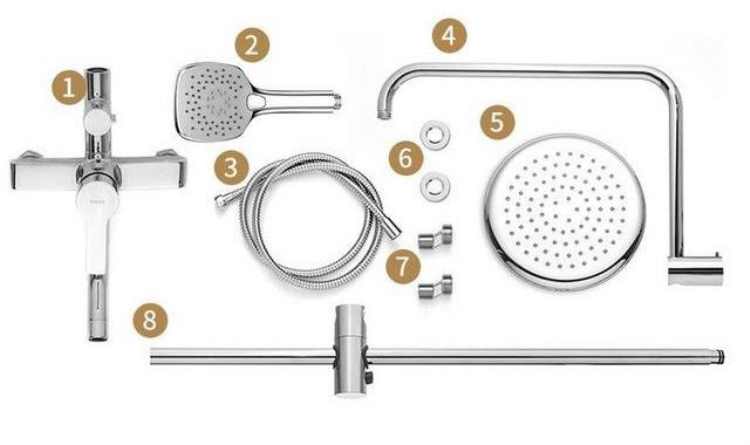

First the shower was disassembled .

It can be seen that this is a set of shower shower with complete functions, with top spray, hand-held shower and lower outlet water. The components of the shower shower mainly include: faucet, top spray, hand-held shower, lower water outlet, pipe fittings, slide seat and shower hose.

1、 Faucet

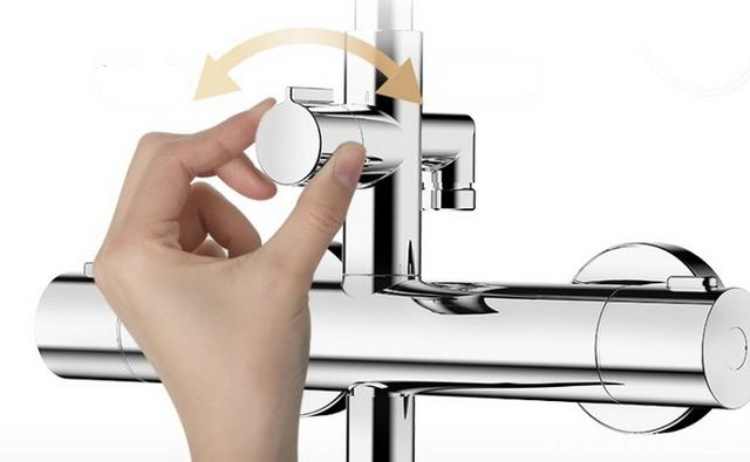

Faucet is the main body of the shower shower, which can be said to be the brain of shower, which is used to control all the water outlet modes, such as switching from the top to hand-held shower or down water discharge. The appearance of the faucet seems simple, the internal structure and accessories are very precise, so that a variety of water outlet modes can be quickly switched.

The faucets of large brand shower are basically made of fine copper and are formed in one. That is, the main body of the faucet is a whole from inside to outside, without splicing, so as to avoid the problems of water leakage and dripping during the use, and the service life is longer.

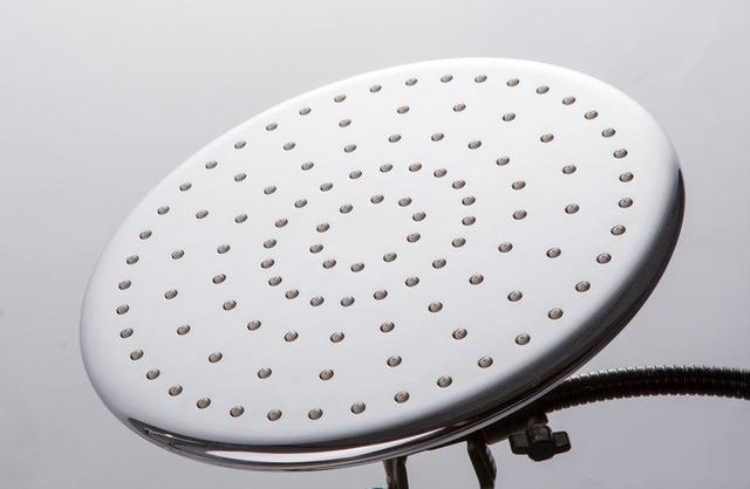

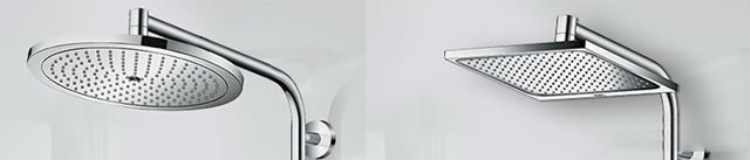

2、 Top spray

The top spray has round and square shape, and the square design sense is stronger, and the process requirements are higher; the circle is more common and the water outlet distribution is more reasonable (such as the cover surface of umbrella). The color value control selects the square, the practical party chooses the circle.

From the material point of view, the top spray mainly includes ABS top spray and stainless steel top spray.

ABS is engineering plastic, with good strength and heat resistance, and is the most commonly used material for top spray of shower.

Stainless steel is corrosion resistant and not easy to rust. It is usually thin in appearance. It is mainly considered that the bearing of pipe fittings, too thick top spray and increased weight will increase the risk of falling if the pipe fittings are not thickened accordingly.

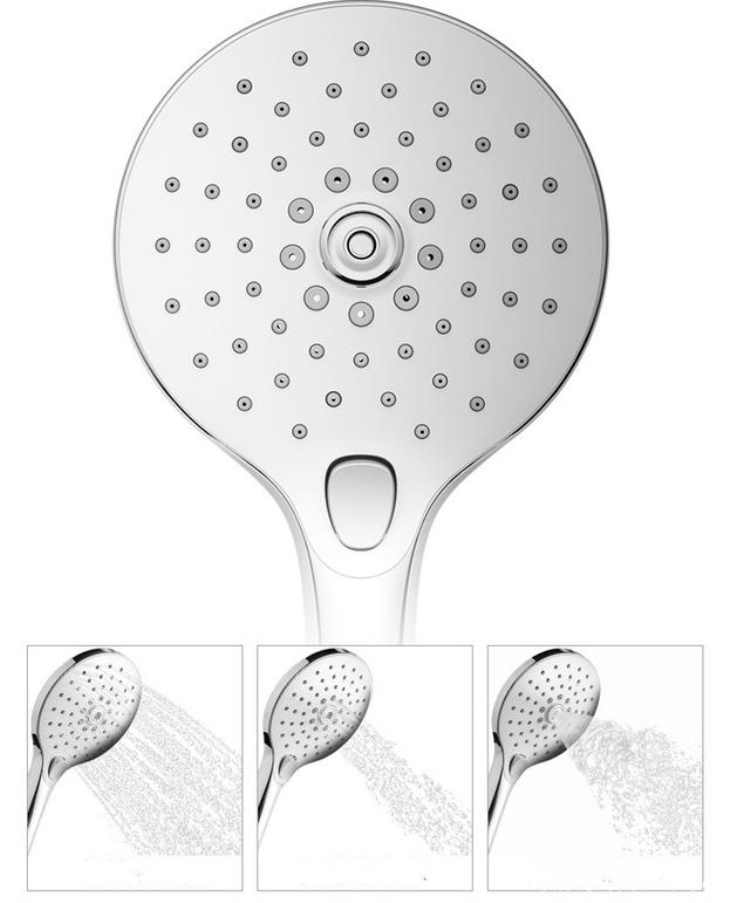

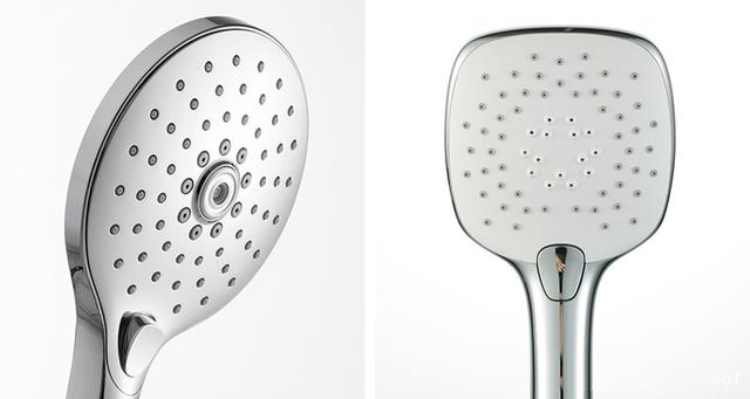

3、 Hand held flower spray

The most basic and common way of water outflow. Like top spray, there is a round and square shape. On the material, the whole bathroom industry hand-held shower is mostly ABS material.

Hand sprinklers are simply "good at playing with water flowers". Even the most common hand-held sprinklers usually have a variety of water outlet modes, such as flower watering, massage water and mixed water.

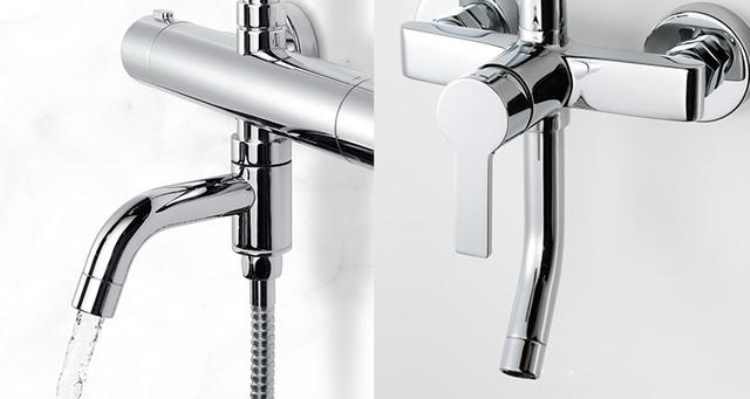

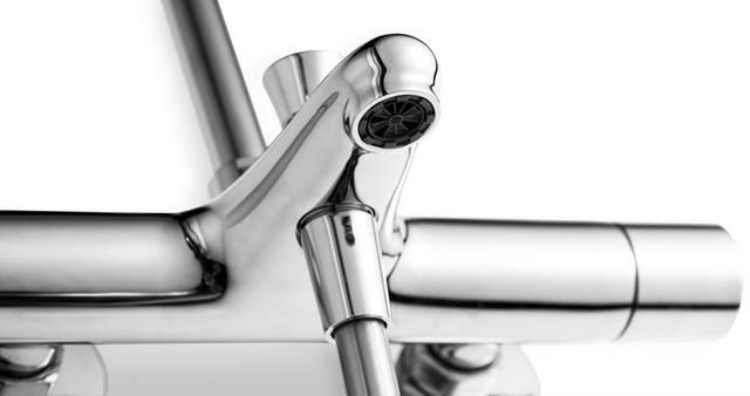

4、 Lower water

The function of the lower water is equivalent to a single cold water tap, that is, to choose a shower with the function of lower water outlet, it can be considered that no more tap is installed on the wall, which has the same effect of water outflow. The shape design of the lower water is diverse, such as the shape of faucet, simple long pipe shape, etc.

The material of the effluent is generally all copper or local copper. The whole copper refers to the whole use of fine copper. Considering the possibility of daily water connection, the large brands mostly use H59 copper or H62 copper. The copper material has antibacterial effect and conforms to the concept of healthy water use, but the price is higher. Some businesses adopt the method of local copper, namely, the lower outlet elbow or pipe body is made of stainless steel, and the outlet nozzle is made of H62 copper.

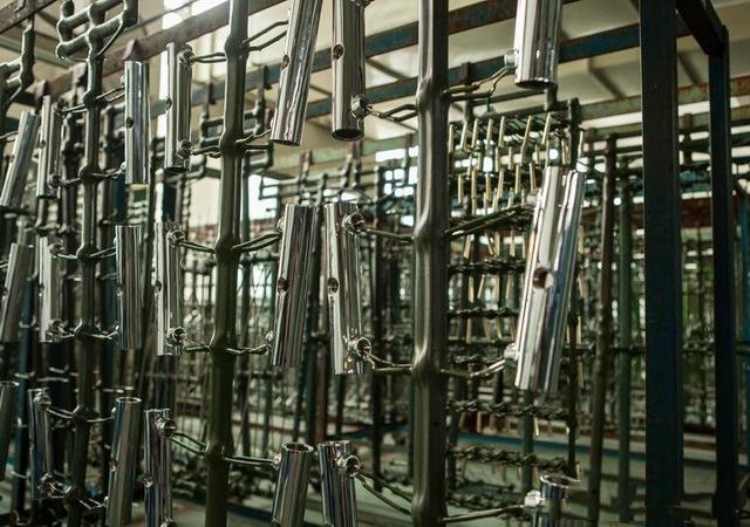

5、 Support pipe

The connecting pipe of the main body and top spray can be divided into the lower straight pipe and the upper elbow according to the appearance of the pipe fittings. Shower fittings are generally made of copper or stainless steel, good brands use H62 copper, followed by 304 stainless steel.

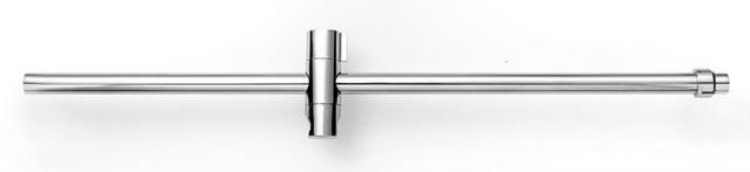

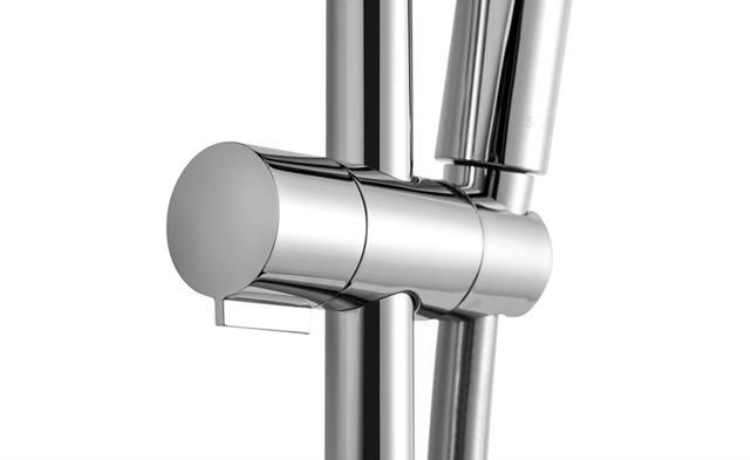

6、 Slide seat

Slide seat is mainly used to hang and adjust the height and angle of hand-held shower, generally ABS and stainless steel. Among them, there are two main design styles in the realization of longitudinal height adjustment: button type and rotary type, which is not very different visually, and it is mainly selected according to personal operation habits.

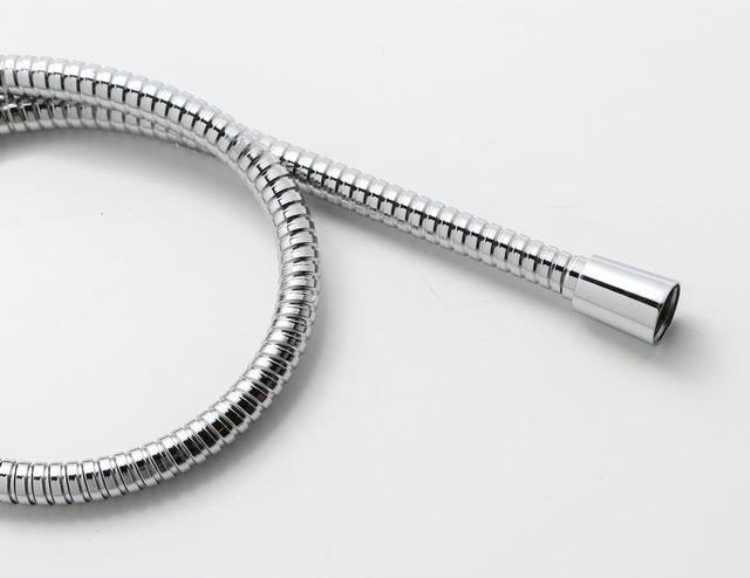

7、 Shower hose

The hose is used to connect and extend the hand-held shower to expand the shower area. A good hose should have good explosion-proof force and anti winding characteristics.
