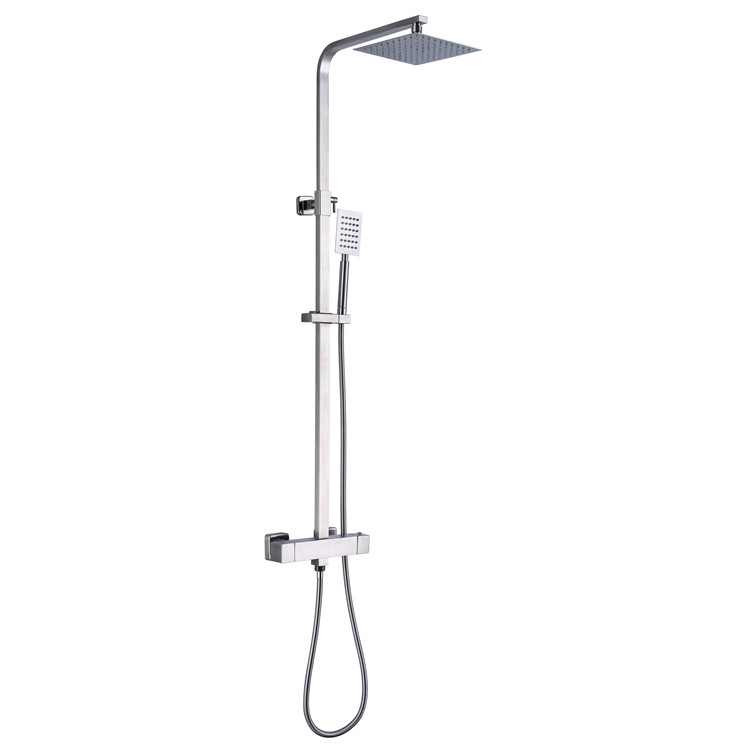

Stainless Steel 304 Brushed Exposed 2-function Thermostatic shower set

YUANTU Thermostatic shower set Modle:YT-1-3015H

Installation and use

*If there have many small solid lumps in tap water, it is not suitable to use constant temperature shower faucet;

*If the tap water contains powdery sediment or soft foreign matter, it may reduce the sensitivity of thermostatic valve core and shorten the service life of thermostatic shower faucet;

*Try to shorten the distance between the water heater and the tap, so that the hot water can reach the tap as soon as possible;

*The normal water pressure is 0.05Mpa ~ 0.6MPa;

*The hot water pipe must be on the left and the cold water pipe must be on the right;

*Be sure to clean up the installation site before installing the thermostatic shower faucet, so as to avoid small sand and stone blocks damaging the rubber ring, thread, thermostatic valve core and other parts of the faucet;

*Please install according to the instruction manual, and pay special attention not to leak, lose or damage any gasket or rubber ring;

*The constant temperature shower faucet has no heating function. Please adjust the water temperature of the water heater to 60 ℃ ~ 85 ℃;

*The sprinkler and the sprinkler tube can not bear the high temperature above 60 ℃;

*After each use, make sure that the water temperature adjusting knob on the left side is adjusted below 40 ℃;

*If the water pressure difference between hot water and cold water is too large, please use a screwdriver to adjust the valve of the bracket. Families using gas water heaters need to pay more attention to this.
